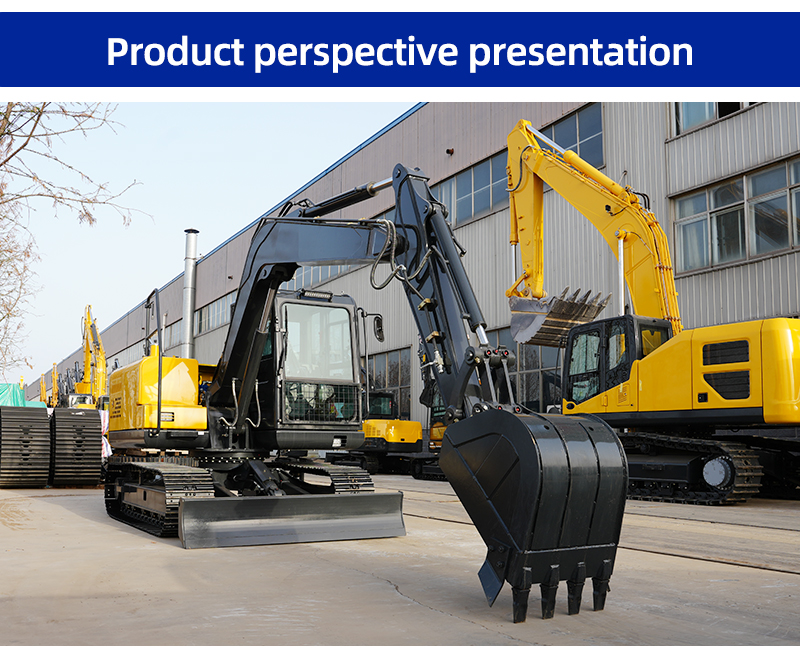

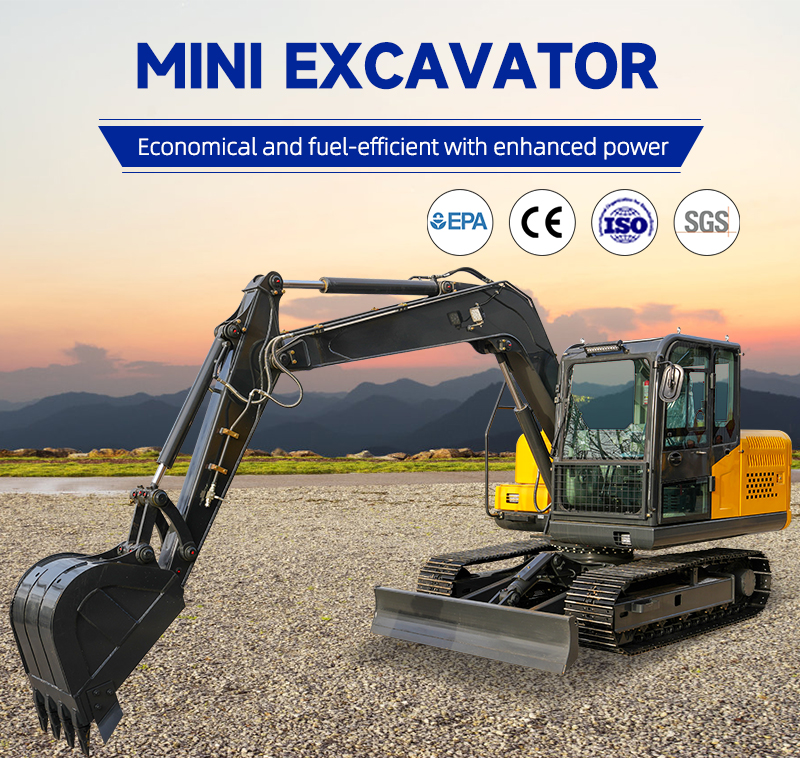

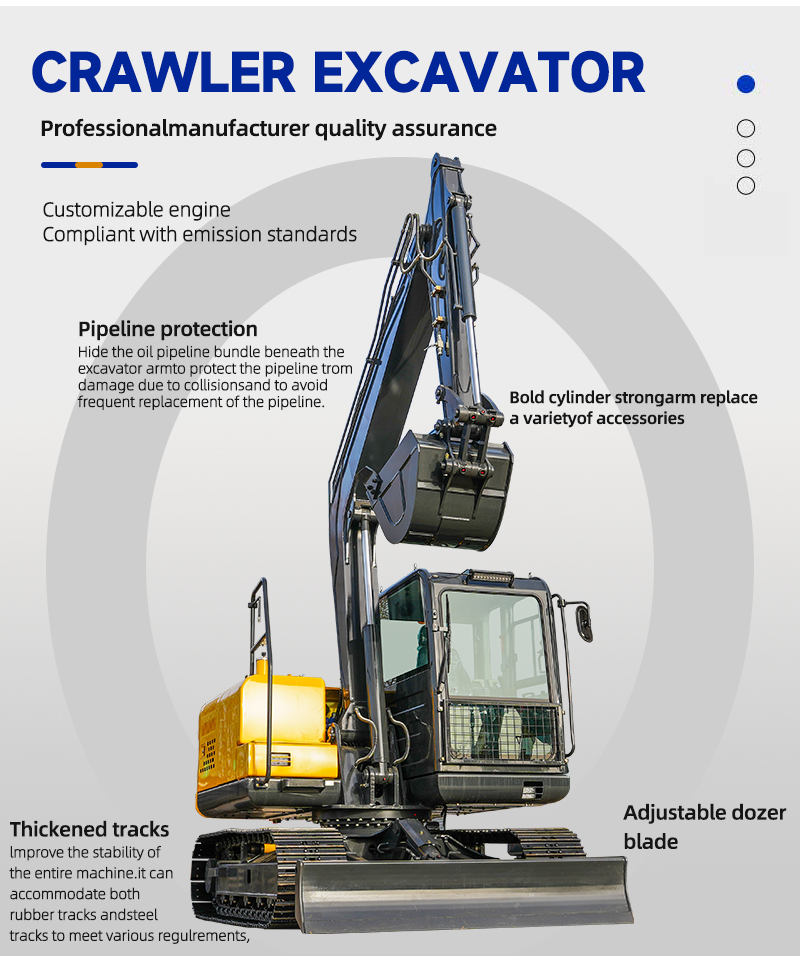

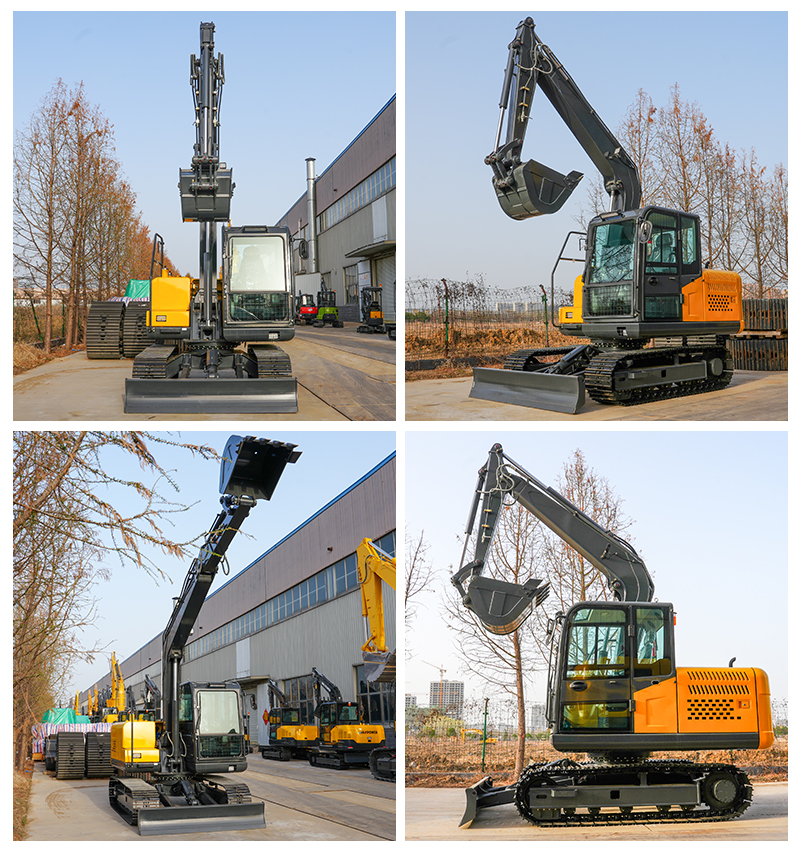

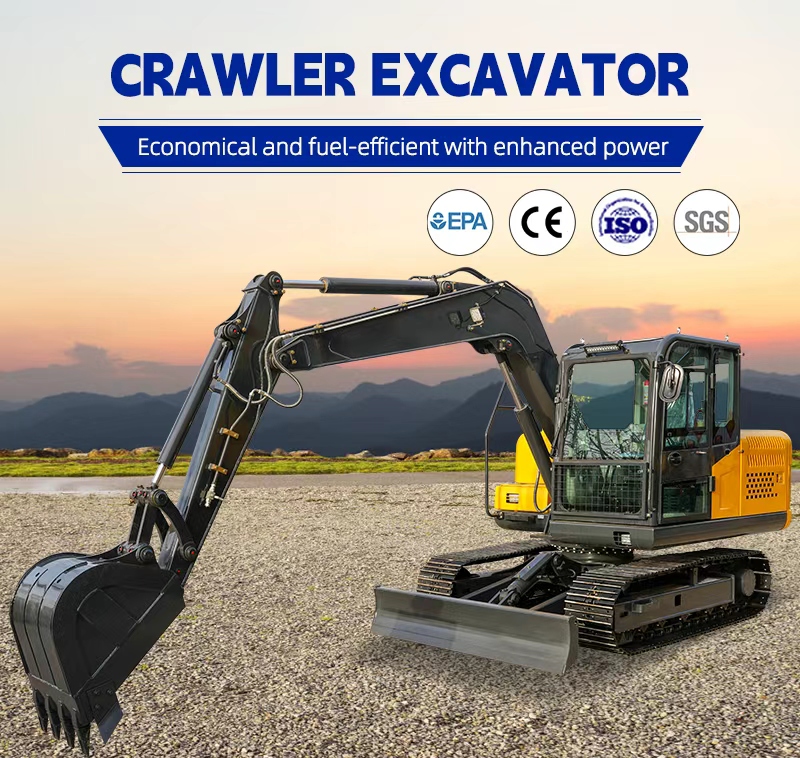

8 ton small excavator
Whole machine weight:8000KG
Engine type:YANMAR 4TNV98T
Bucket capacity:0.34m’
Ground clearance of counterweight:760mm
Ground clearance:380mm
Engine power:54.3KW
Rotating speed:10r/min
Entire length:6100mm
Maximum digging depth:4038mm
Full width:2300mm
Fuel tank capacity:130L
Full height:2680mm
Hydraulic oil tank capacity:90L
Description
1. Continuous operation durability: The temperature rise of hydraulic oil is 15% lower than that of wheeled machines, making it suitable for 8-hour continuous crushing operations.
2. All-terrain conquering capability, ground contact pressure ≤ 35 kPa: With the optional installation of swamp steel tracks, it can operate on soft ground surfaces such as mud and sand (wheeled excavators need to lay steel plates).
3. Climbing ability: 42°; far exceeding the 30° limit of wheeled excavators, suitable for steep slope operations such as mining stripping and terraced field renovation.
4. Ground clearance ≥ 380mm; it is less likely to bottom out when passing through complex ground such as piles of rocks and tree stumps.
5. Mine rough crushing: When equipped with a hydraulic breaker hammer, the stability of the equipment is 30% higher than that of wheeled machines, reducing the risk of hammer jumping.
