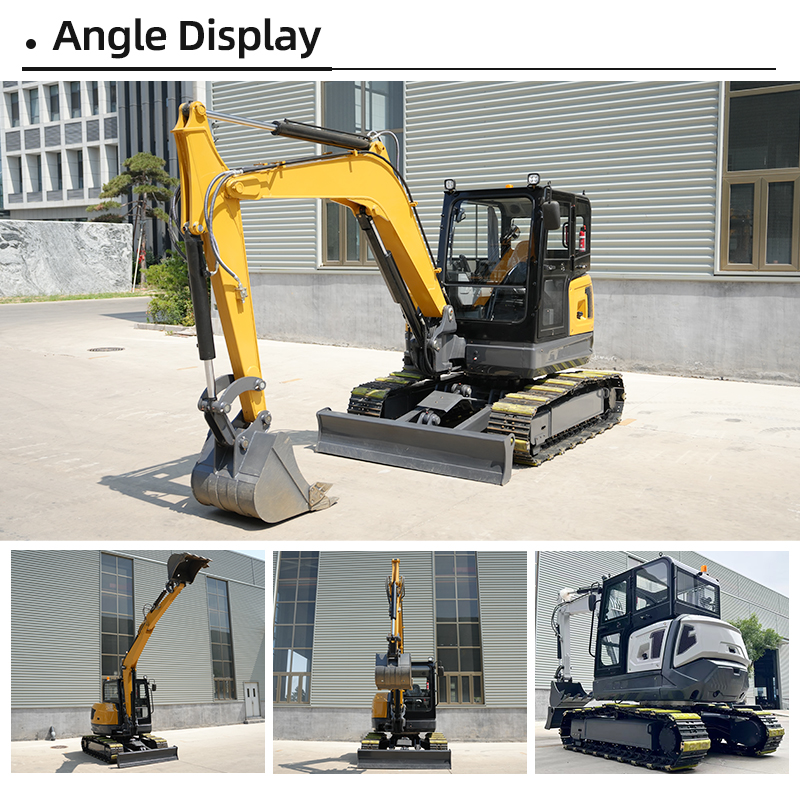

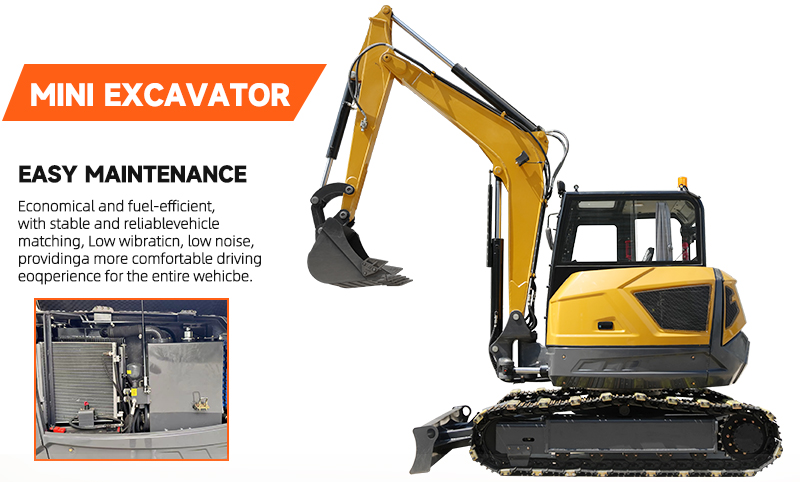

6.5 ton mini excavator
Whole machine weight:6.5 Ton
Engine Brand:Yanmar494/KubotaV2607
Rated Power:36.3KW/42.5KW
Digging Bucket Capacity:0.23 m’
Body Swing Radius:1180 mm
Body Swing Angel:360
Boom Swing Angel(L/R):45/55
Overall dimension:5836*2000*2572 mm
Max. Digging Radius:6044 mm
Max Digging Depth:2845 mm
Max.Digging Height:5157 mm
Max. Unloading Height:3692 mm
Min. Swing Radius:3022 mm
Max. Digging Depth Of Dozer Blade:369 mm
Description
1: Standard configuration of Yangma 494 Guo-2 engine, optional installation of Yangma 498 Euro 5 and Kubota V2607 dual certified engines.
2. The hydraulic system adopts the complete set of LongGong hydraulic system (pump, valve, motor) with soft and smooth composite action Higher efficiency.

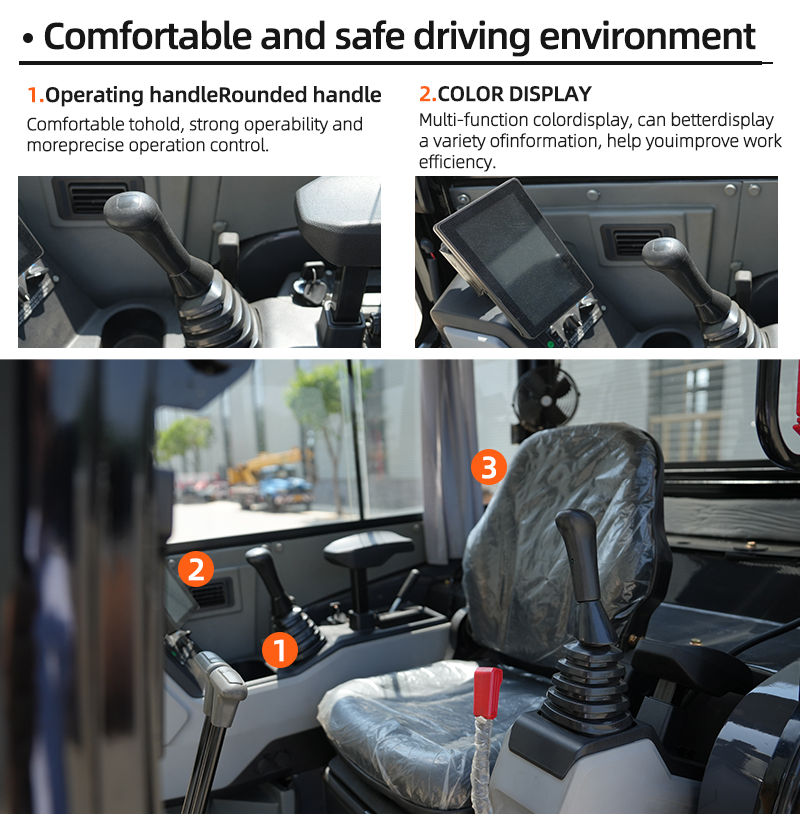

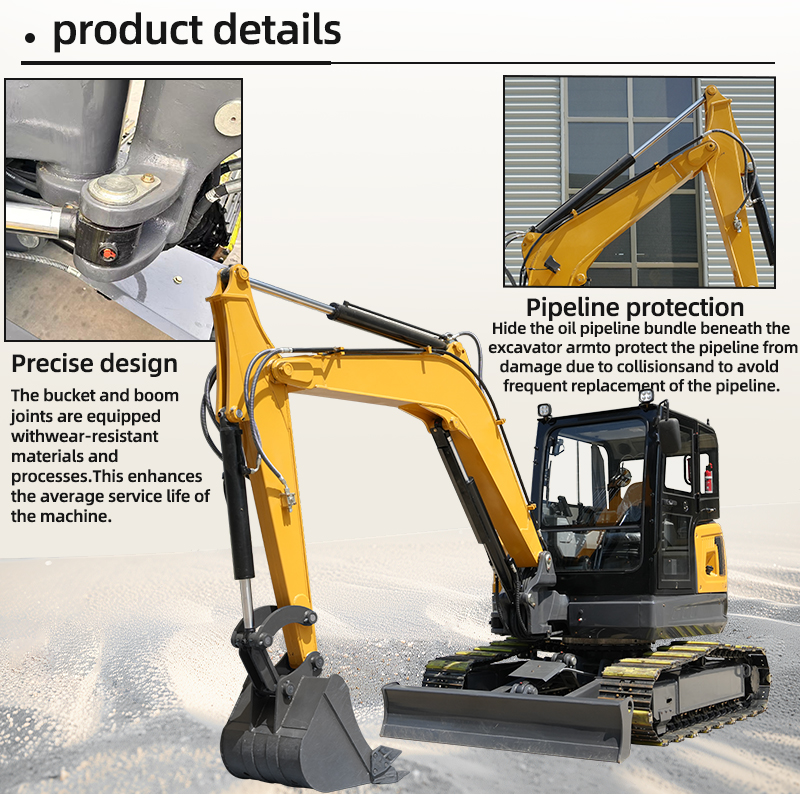

3. The large arm side swing is the first in China, with a round tail design that conforms to foreign aesthetic views. The base of the upper arm and the front fork of the upper arm are both molded and cast as a whole. The large display screen in the cab and the armrest box are molded as a whole (high-end, atmospheric, and high-end).
4. The total weight of the vehicle is 6.5 tons, with built-in air conditioning for heating and cooling.
