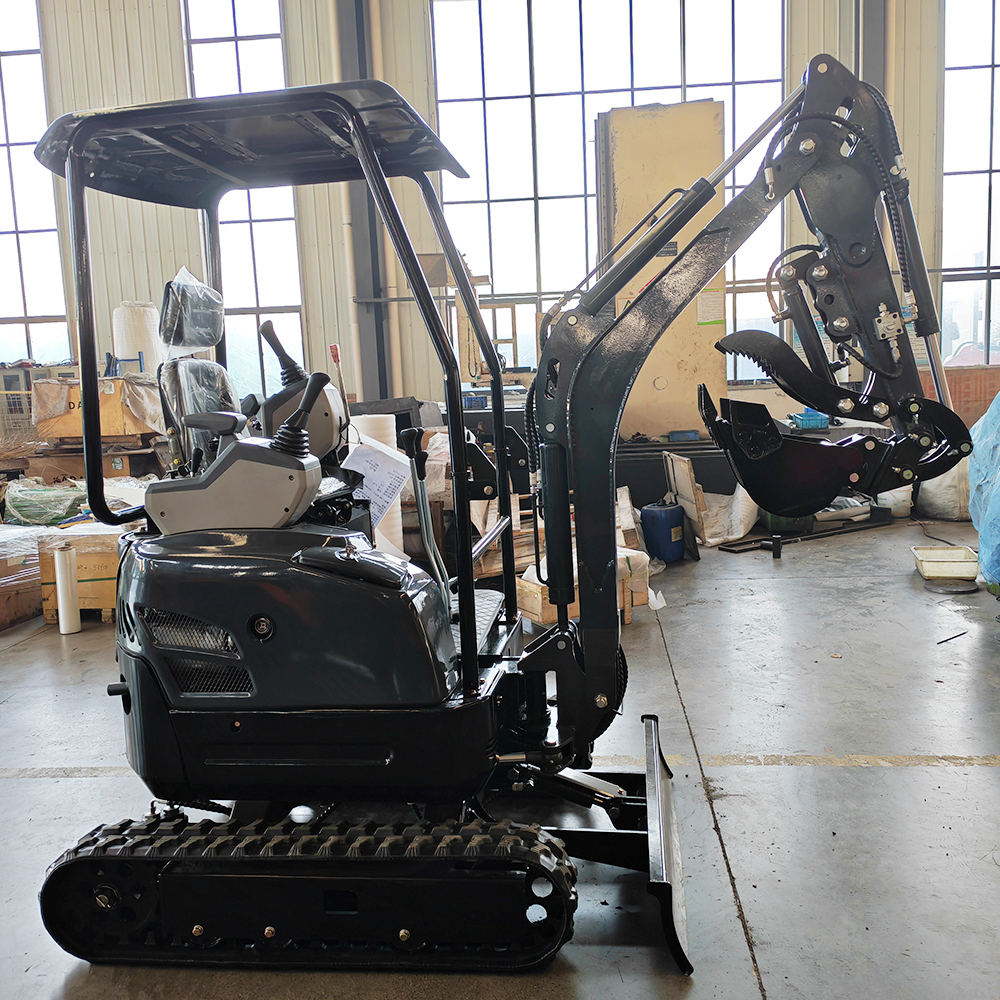

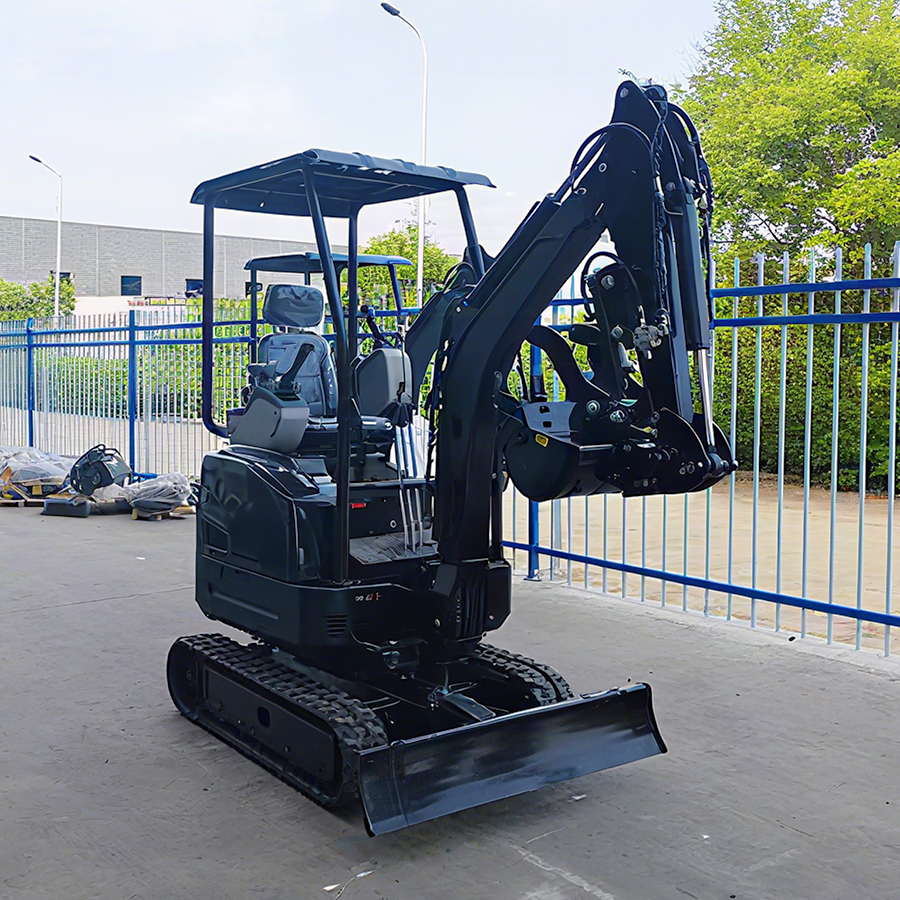

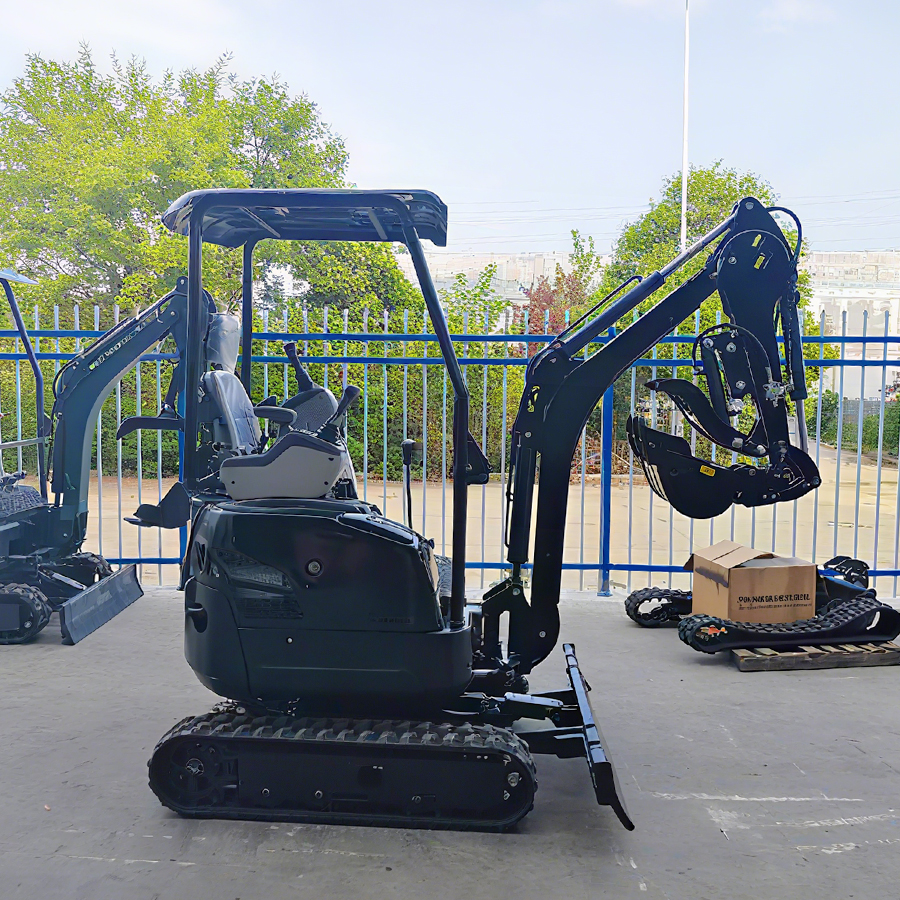

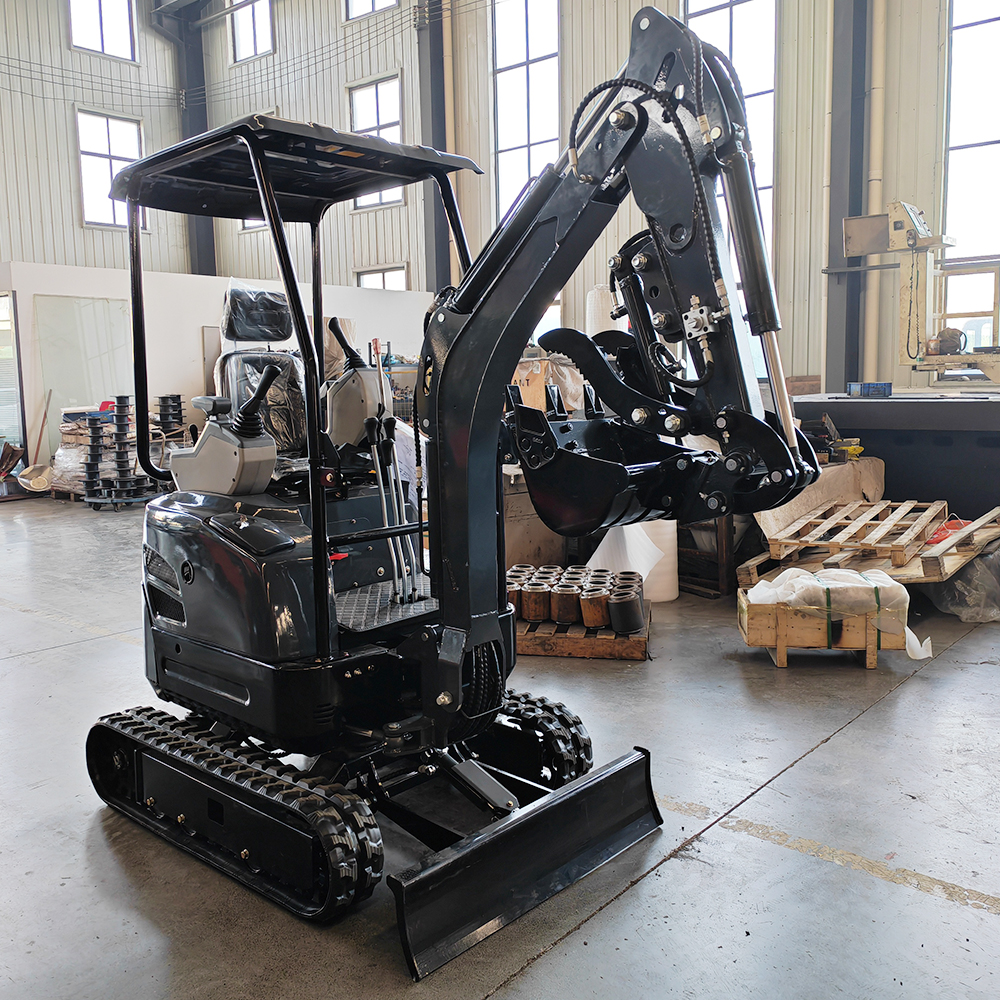

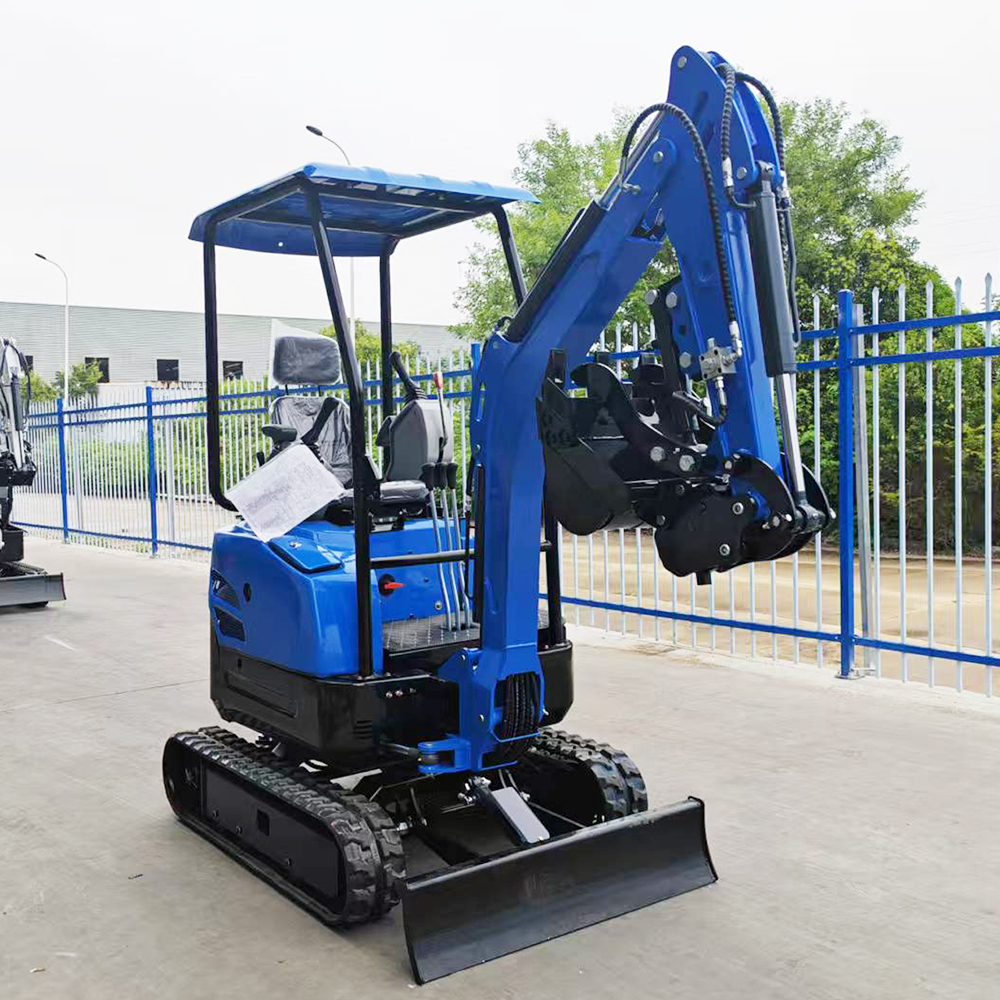

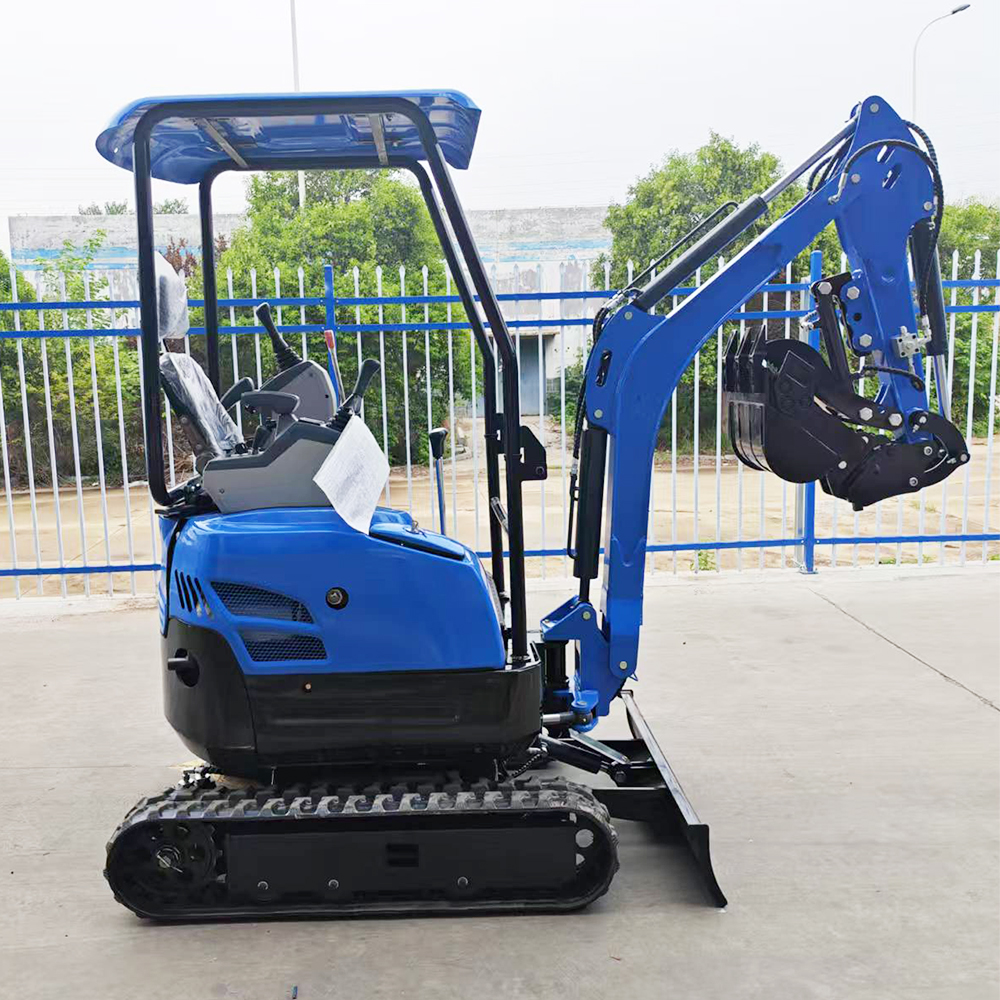

1.5 ton mini excavator
Engine Optional:Kubota/10.1kw
Max.Digging Height:2550mm
Max.Dumping Height:1710mm
Max.Digging Depth:1740mm
Max.Digging Radius:3100mm
Turning Radius:1635mm
Bucket excavating force:11KN
Operating Weight:1500kg
Chassis Width:1000mm
Track Length:1300mm
Gradeability:40°
Chassis Ground Clearance:385mm
Track Width:180mm
Volume of fuel tank:3.5L
Overall Dimension:2200*1100*2200mm
Transport Length:2400mm
Excavator Height:2200mm
Hydraulic flow:40L/Min
Hydraulic tank capacity:16L
1.We offer a one-stop service platform.

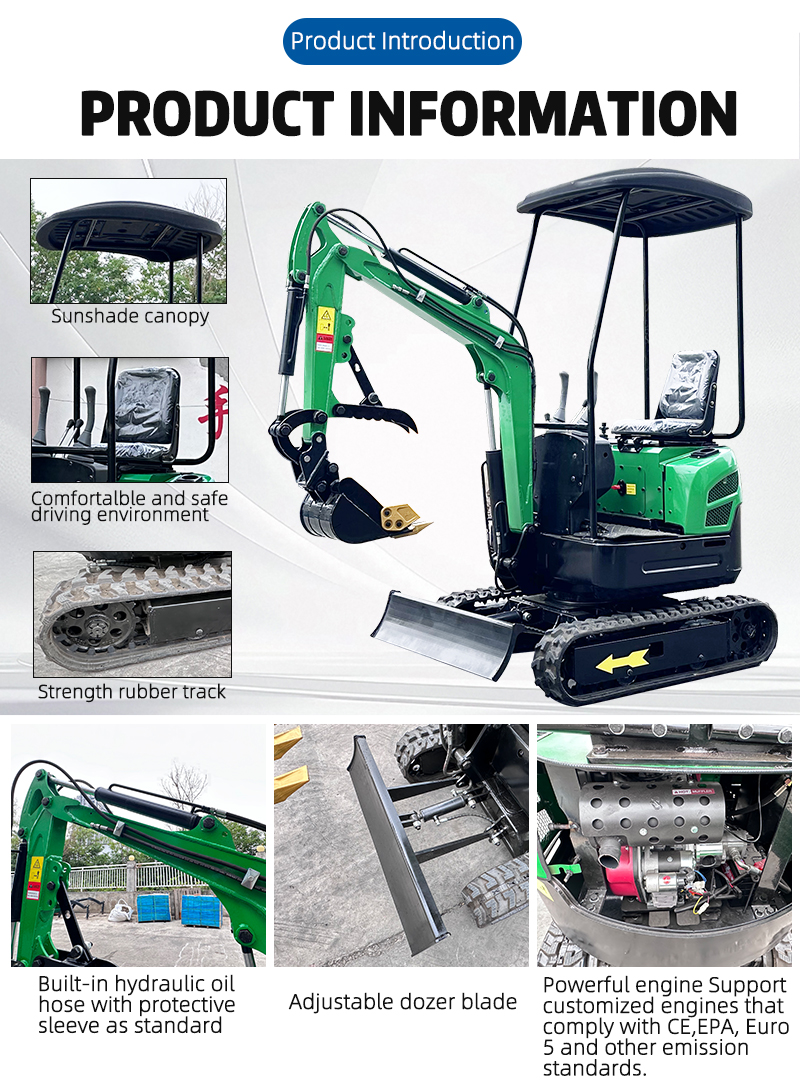

2.Its small body size and flexible operation. This allows it to move freely in a narrow space, easy to complete a variety of fine tasks.
3.Shipping is very convenient, and a small pickup truck can pull it away.
4.This micro excavator is equipped with a high performance, low fuel consumption and low noise engine with power between 10-15 kilowatts. This configuration not only ensures the power demand of the excavator, but also helps to reduce the operating cost.

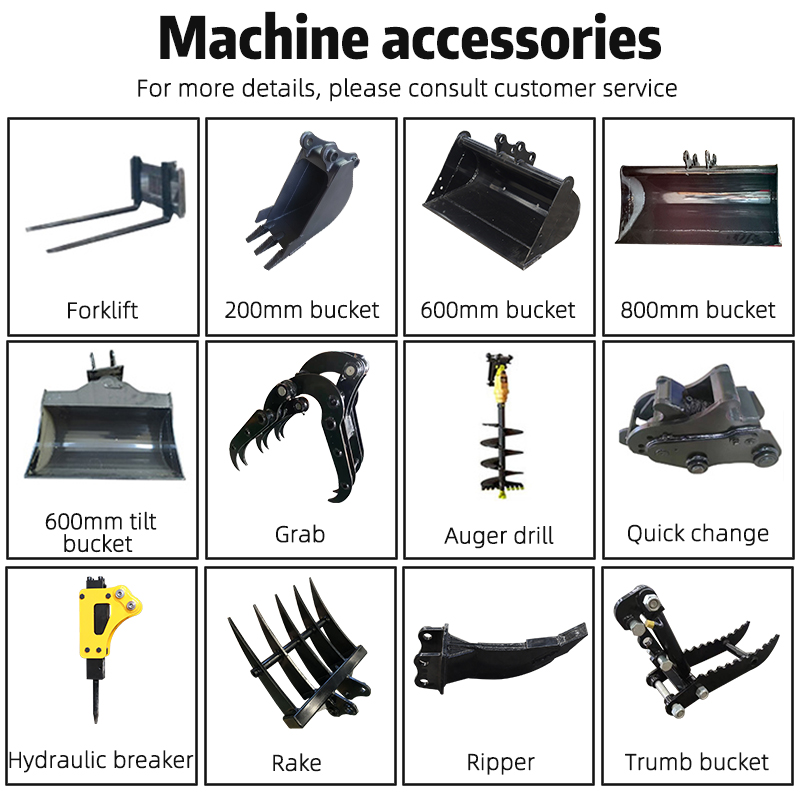

5.A variety of auxiliary tools can be installed, such as roller, flat plate ramming, crushing hammer, hydraulic pliers, etc., which are suitable for trench landfill compaction, lightweight demolition, drilling and other working scenarios.
6.Contact us immediately to get more information and quotes on miniature excavators for free.
